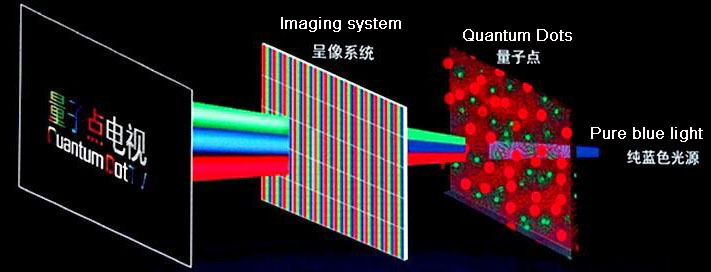

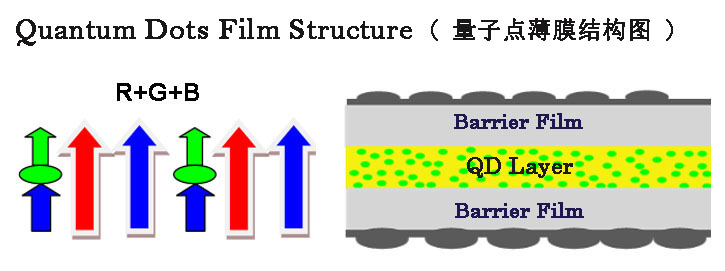

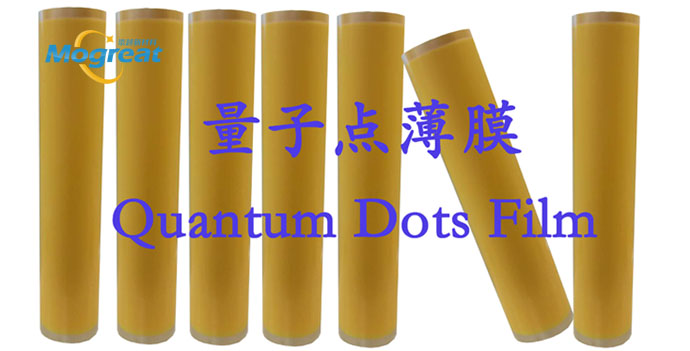

Latest NewsMogreat's quantum dots film ( MoColor ) is quantum dots encapsulated into a sandwich structure, which the upper and lower layers are PET films or similar, it is used with blue LED, placed it on the light guide plate ( or straight down type diffuser ). Blue light is transformed into a very narrow spectrum white light through the quantum dot film to achieve the purpose of enhancing the color gamut . Quantum dot film ( MoColor ) features: higher brightness, better stability, less invalid edge (<1mm), longer service life ( 30000-50000h ) .
Regular Roll Width : 1m / Monthly Output Capacity : 500000㎡

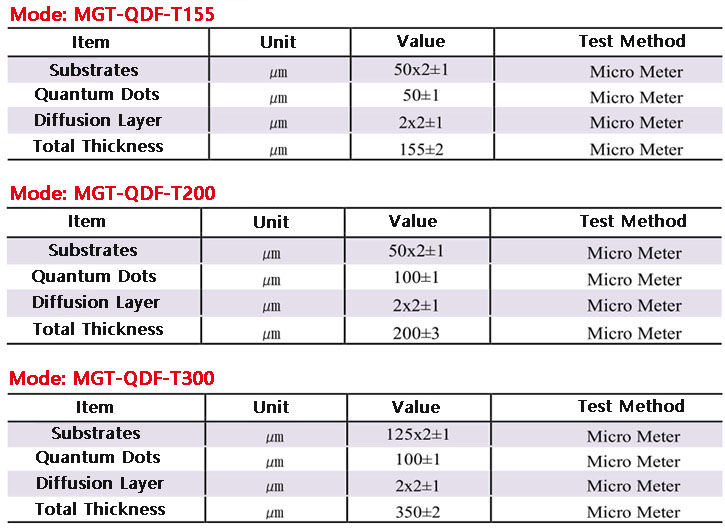

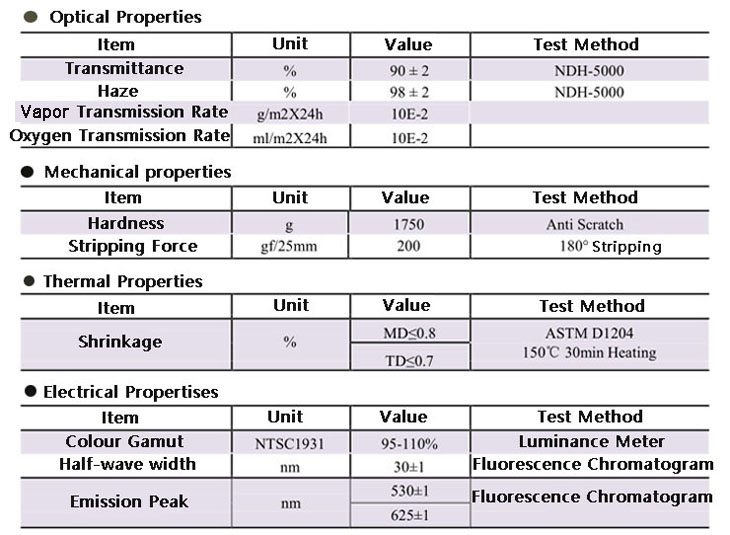

QD Film Properties :
Product applications :
Quantum dot film is widely used in LCD TV, LCD monitor , laptop computer, tablet computer, smart phone, navigator, vehicle touch display and Industrial control display and other functional displays. ( Quantum dot displays: quantum dot TV, quantum dot smart phone, quantum dot tablet, optical conversion components, photoelectric conversion components, quantum dot solar cells, etc. )
Compared with the traditional LCD technology which Uses normal LED as backlight source, quantum dot display technology has the following advantages:

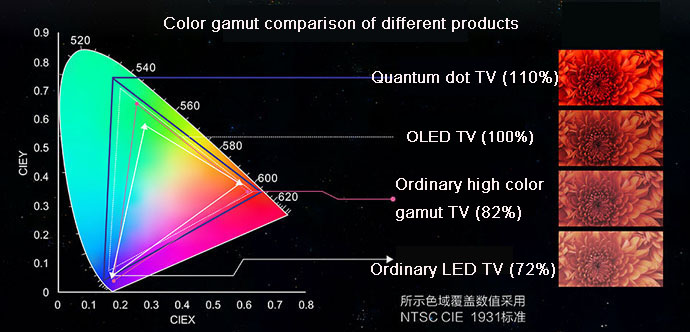

1. High & wide color gamut, the most real image color is restored ( the color gamut increasesed more than 40%, and the 100% BT2020 standard can be achieved ).
2. Quick response speed, short time of afterglow (The afterglow time is usually dozens of nanoseconds, no residual image, drag-tail, etc.)
3. High reliability and long service life ( below 80℃ can be used for 30000hours, conform to the life requirements of the 30000h L70 ).
4. The differentiation of backlight source can be customized ( compatible with conventional backlight module, easy to implement surface backlight ).
5. Lower energy consumption and more energy saving and environmental protection ( reducing energy consumption by 30-35% ).
6. Competitive price advantages.
For more information, please duly contact with Mogreat Technologies Co.,Ltd.
URL: www.mogreat.com
